Original price was: ₹3,250.00.₹2,850.00Current price is: ₹2,850.00.
Silica Aerogel Insulation Sheet is one of the world’s most advanced thermal insulation materials, designed for applications where maximum insulation is required with minimum thickness. Known as “solid smoke”, aerogel offers exceptionally low thermal conductivity, making it ideal for industrial, commercial, and energy-efficient construction projects.
OZIANT supplies high-performance Silica Aerogel Insulation Sheet suitable for industrial insulation, HVAC, building envelopes, cold chain, and specialty energy-saving applications.
OZIANT Industrial Grade Silica Aerogel Insulation Sheet (Series W-AERO)
The world’s most efficient solid insulation material. OZIANT Silica Aerogel Insulation Sheets deliver superior thermal performance (0.018~0.020 W/m·K) with a fraction of the thickness of traditional rockwool or fiberglass. Hydrophobic, fire-retardant (A1 Grade), and flexible. Ideal for: Industrial piping, cold storage, building envelopes, and EV battery protection.
Availability: 3mm, 6mm, 10mm thicknesses.
Supply: Bulk rolls or cut-to-size sheets.”
Revolutionize Your Insulation with Wedge Industries Engineering.
The OZIANT Silica Aerogel Insulation Sheet is a premium nano-porous insulation blanket designed for extreme temperature environments. By combining silica aerogel with fiberglass reinforcement, we provide a solution that offers 3-5x better insulation performance than traditional materials, allowing you to save space and reduce energy loss significantly.
Key Technical Advantages:
Ultra-Low Thermal Conductivity: At 0.020 W/m·K (at 25°C), it blocks heat transfer more effectively than any other industrial material.
Space Saving: Achieve the same insulation value with only 20% of the thickness required by rockwool.

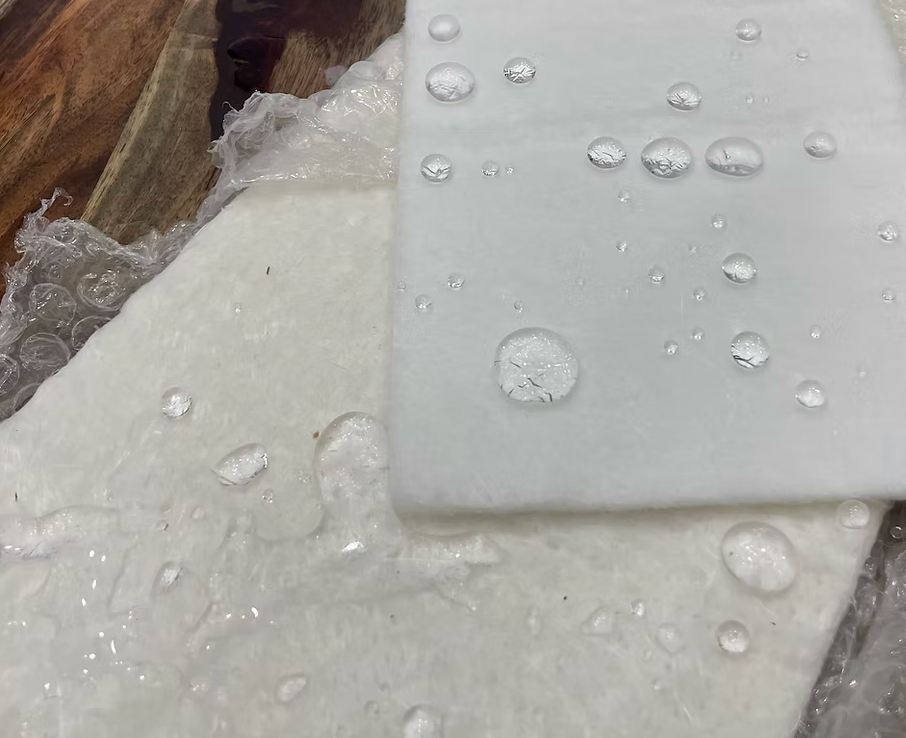

Hydrophobic & Breathable: Repels liquid water to prevent corrosion under insulation (CUI) while allowing vapor to escape.

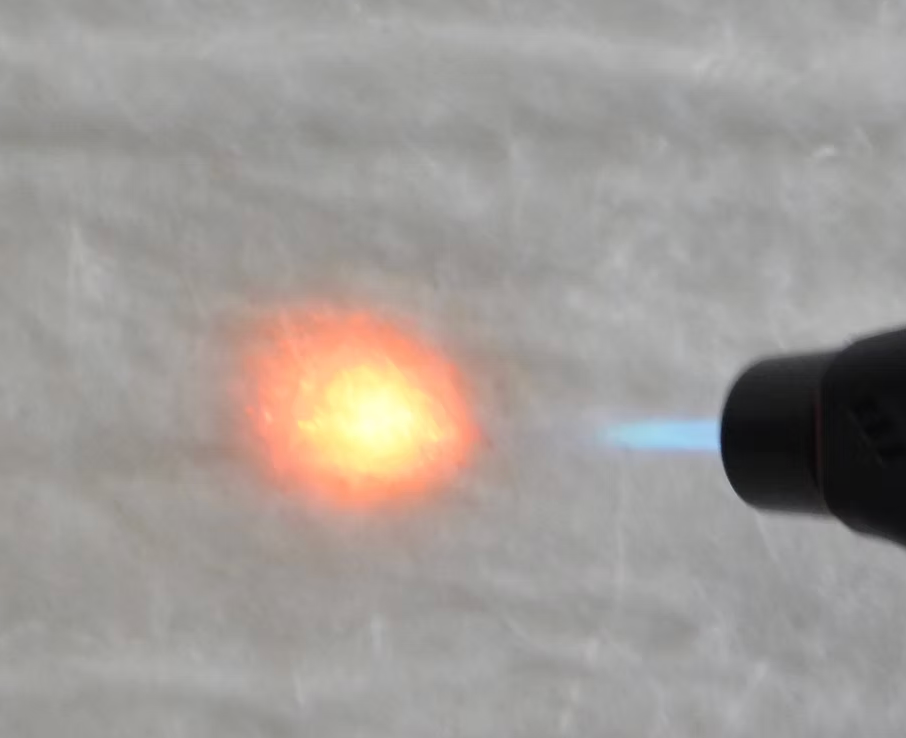

Fire Safety: Non-combustible A1 Fire Rating, ensuring safety in high-risk industrial zones.
| Property | Specification |
| Material | Silica Aerogel + Composite |
| Thickness Options | 3mm, 6mm, 10mm |
| Width | 1500 mm (Standard Roll) |
| Thermal Conductivity | ≤ 0.020 W/m·K |
| Temperature Range | -200°C to +650°C |
| Density | 200 ± 20 kg/m³ |
| Hydrophobicity | ≥ 99% |
Applications:
Construction: Slim wall insulation to maximize carpet area.
Industrial: Steam pipe insulation, refineries, and chemical plants.
Cold Chain: Ultra-thin insulation for refrigerated shipping containers.
B2B Procurement: Sold in standard rolls or customized cuts. For project-based inquiries (over 100 sq. meters), please use the Request a Quote button for volume pricing.
